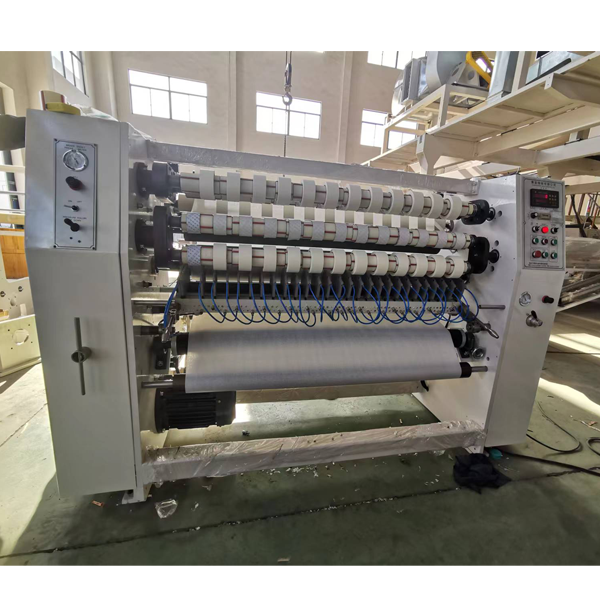

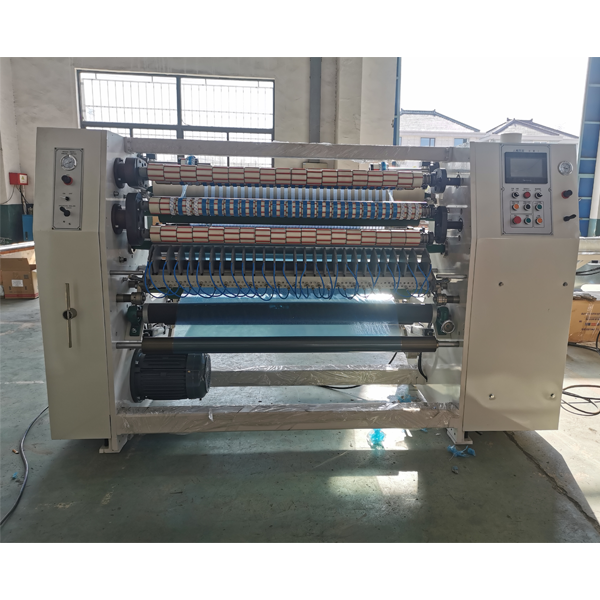

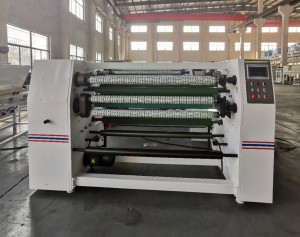

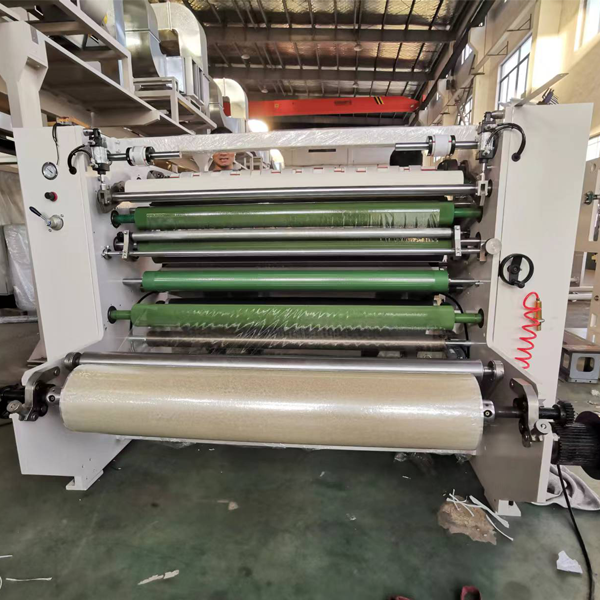

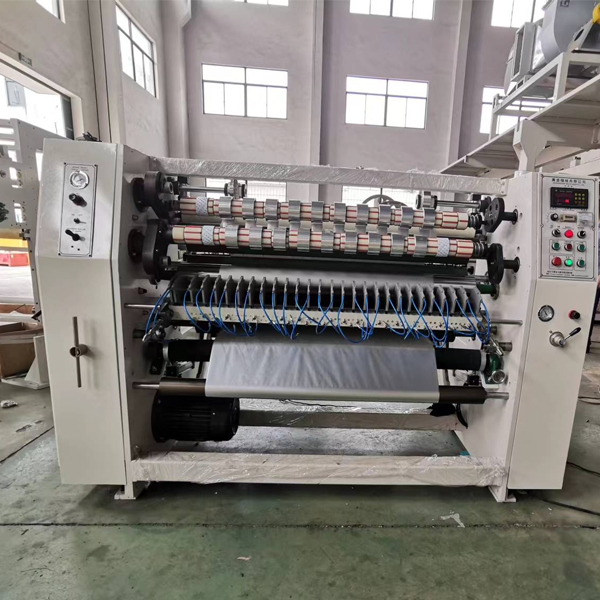

GS212F 1300mm customized multifunctional adhesive tapes slitting machine
General technical parameters(customized):
Width | 1300mm |
Max. unwinding diameter | 600mm |
Max. rewinding diameter | 150mm |
Paper core | 76.2mm |
Machine speed | 0-180m/min |
Unwinding shaft | 3’ air shaft |
Unwinding brake | Pneumatic brake |
Rewinding shafts | Aluminum shaft with |
Rewinding length | Use 3-stage electronic counter |
Drive motor | 7.5HP motor with inverter |
Slitting tools | Both razor blade and air blade |
Application:
This is one set of multifunctional slitting rewinding machine which is suitable for differenct kinds of adhesive tapes slitting rewinding,such as masking tape, PET/PI tape, aluminum foil tape, bopp packing tape etc.
Features:
This machine is customized according to user’s actual demands,they need make three products, PET tapes, masking tapes and aluminum foil tapes.
It has several features:
A) Multifunctional but simple and easy to operate.
B) Low cost &high return
C) Unwinding part controlled by Pneumatic brake
D) Use 3-stage electronic length counter to ensure accurate rewinding length.
E) Rubber pressing roller controlled by air cylinder which is easy to operate and greatly increase the capacity.
F) Rewinding shafts can two-two exchange driven by 1/2HP AC motor which means it can change the 2 finished tapes rolls without stop machine.
