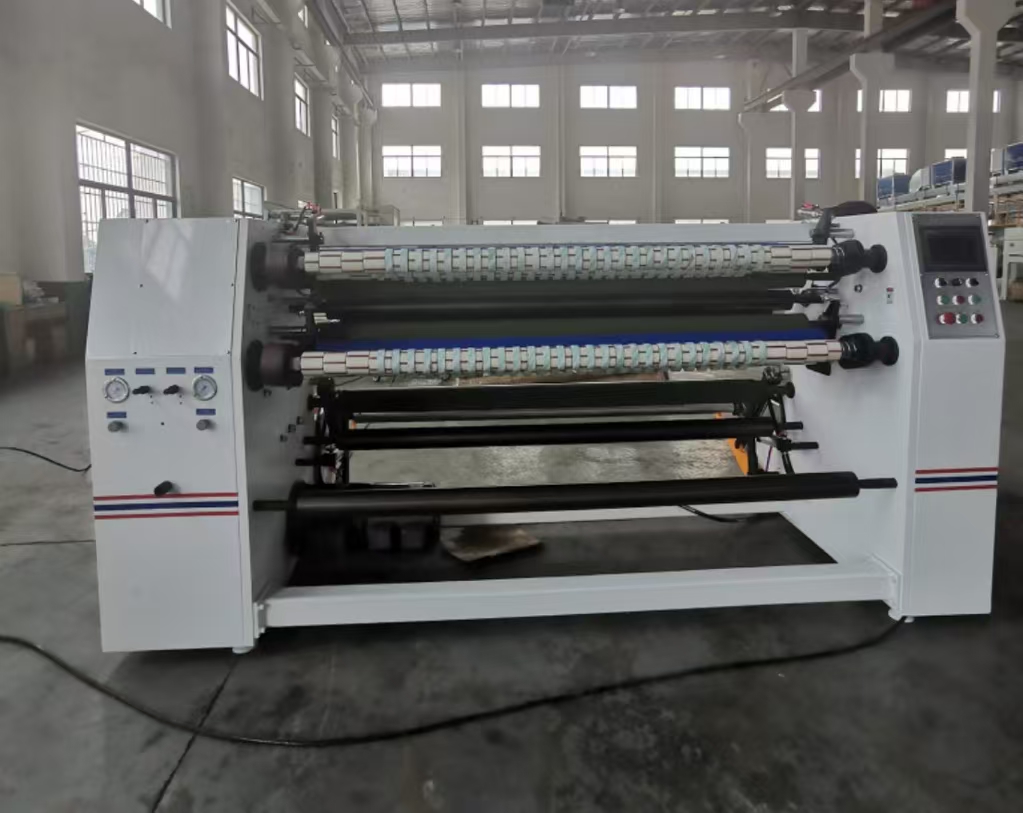

GS212 2024 latest super clear bopp adhesive tape slitting machine
General technical parameters（customized）:
| Width | 1800mm |
| Max. unwinding diameter | 700mm |
| Max. rewinding diameter | 150mm |
| Slitting width: | 18-1800mm |
| Slitting tools: | razor blade |
| Paper core | 76.2mm |
| Machine speed | 150m/min |
| Unwinding shaft | 3’ air shaft |
| Unwinding brake | 10 KG Pneumatic brake |
| Rewinding shafts | Aluminum shaft with bushes |
| HMI | Weinview |
| Drive motor | AC 7.5HP motor with inverter（Taiwan+Mitsubishi） |
| Bubble free device | Apply 2 rubble pressing rollers which controlled by air cylinders |
| Up-down load jumbo roll | Apply hydraulic pressure station driven by 3HP fluid pump |
| Power use | 380V 50Hz 3Phrase |
Application:
This is one set of 1800 slitting machine which is mainly for making super clear bopp adhesive tapes,the minimum slitting width can be 18mm,it applies hydraulic pressure station to support up-down load jumbo rolls, its operation by HMI and length counting display in HMI,which can be more automatic, accurate,high efficient.
Features:
This machine is 2024 latest slitting machine,its Mitsubishi control system is as stable as ever, on this basis, it applies hydraulic pressure station to support up-down load jumbo rolls, its operation by HMI and length counting display in HMI,which can be more automatic, accurate,high efficient.
It has several features:
A) Apply Mitsubishi control system which can ensure stability of machine operation,trouble-free.
B) Bubble free device applies 2 pieces rubble pressing rollers which controlled by air cylinders.
C) Apply hydraulic pressure station to up-down load jumbo rolls.
D) More simple and easier to operate by HMI.
E) Low cost &high return
F) Unwinding part controlled by Pneumatic brake
G) Apply HMI display data,which is more simple and convenient.
