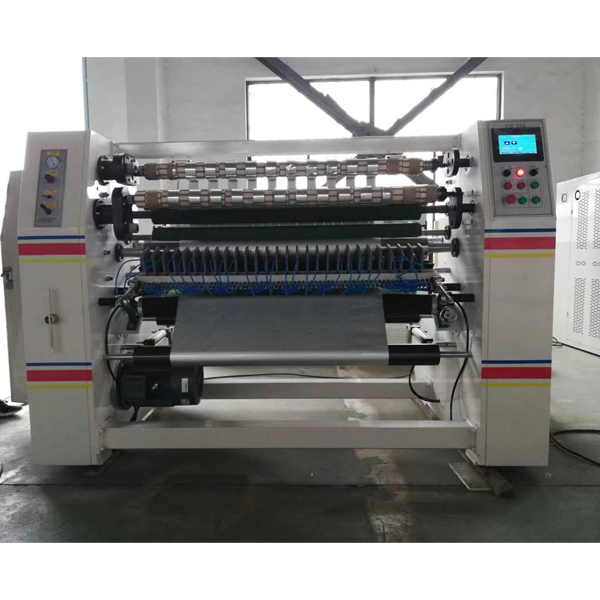

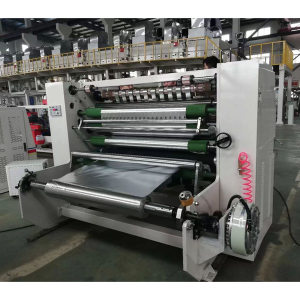

GS212 1300mm customized aluminum foil tapes slitting machine/Siemens control system
General technical parameters(customized):
Width | 1300mm |
Max. unwinding diameter | 600mm |
Max. rewinding diameter | 150mm |
Paper core | 76.2mm |
Machine speed | 0-150m/min |
Unwinding shaft | 3’ air shaft |
Unwinding brake | Pneumatic brake |
Rewinding shafts | Aluminum shaft with precision bushing |
HMI | Weinview |
Drive motor | 7.5HP Siemens motor with inverter |
Slitting tools | Both razor blade and air blade |
Application:
This is one set of multifunctional slitting machine which is mainly suitable for slitting aluminum foil tapes without liner as well as other adhesive tapes.
Features:
This machine is customized according to user’s actual demands.
It has several features:
A) Apply Siemens control system which can ensure stability of machine operation,trouble-free.
B) Multifunctional but simple and easy to operate.
C) Low cost &high return
D) Unwinding part controlled by Pneumatic brake
E) Apply HMI display data,which is more simple and convenient.
F) Rubber pressing roller controlled by air cylinder which is easy to operate and greatly increase the capacity.

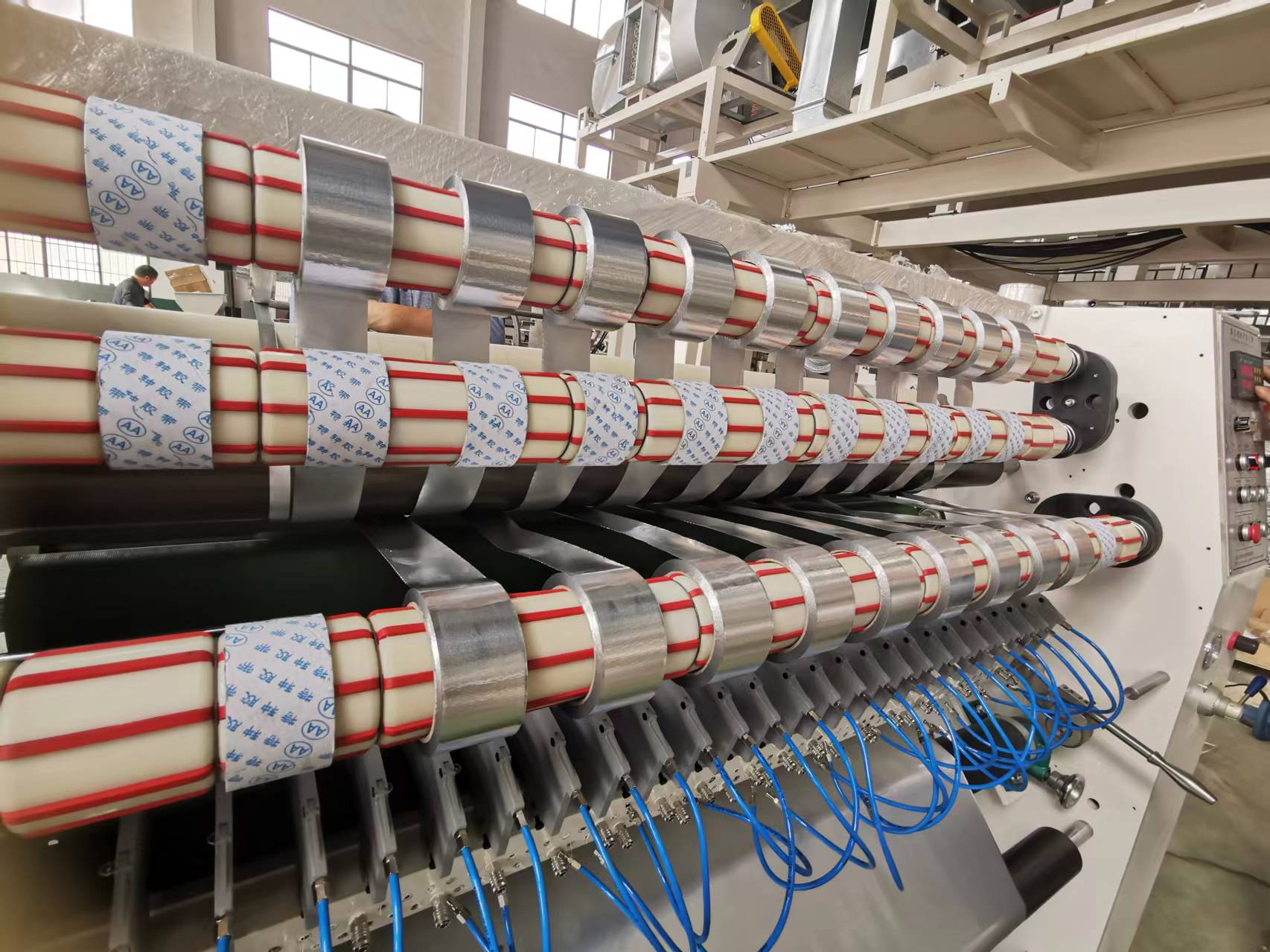

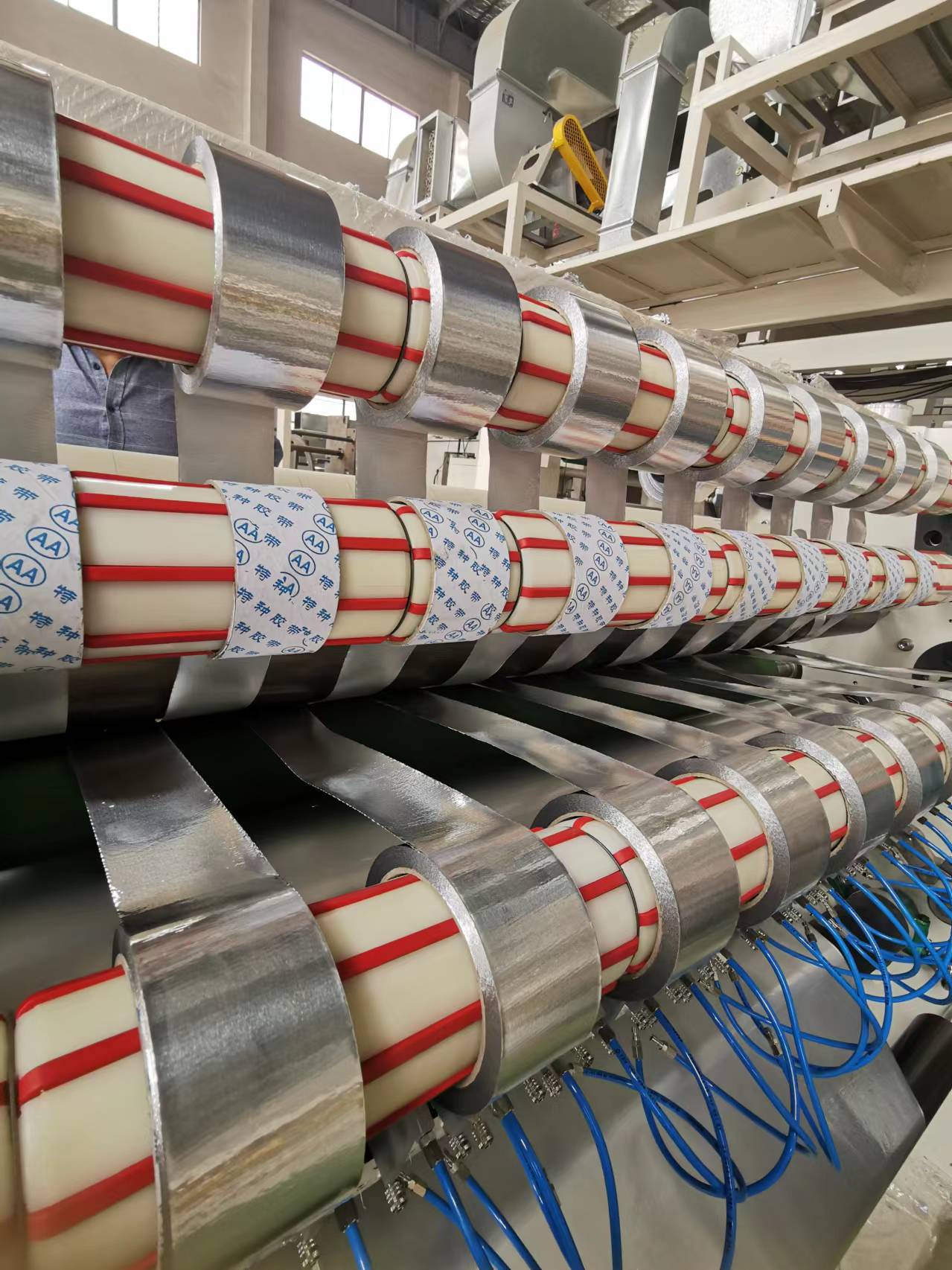

G) Rewinding shafts can two-two exchange driven by 1/2HP AC motor which means it can change the 2 finished tapes rolls without stop machine.
