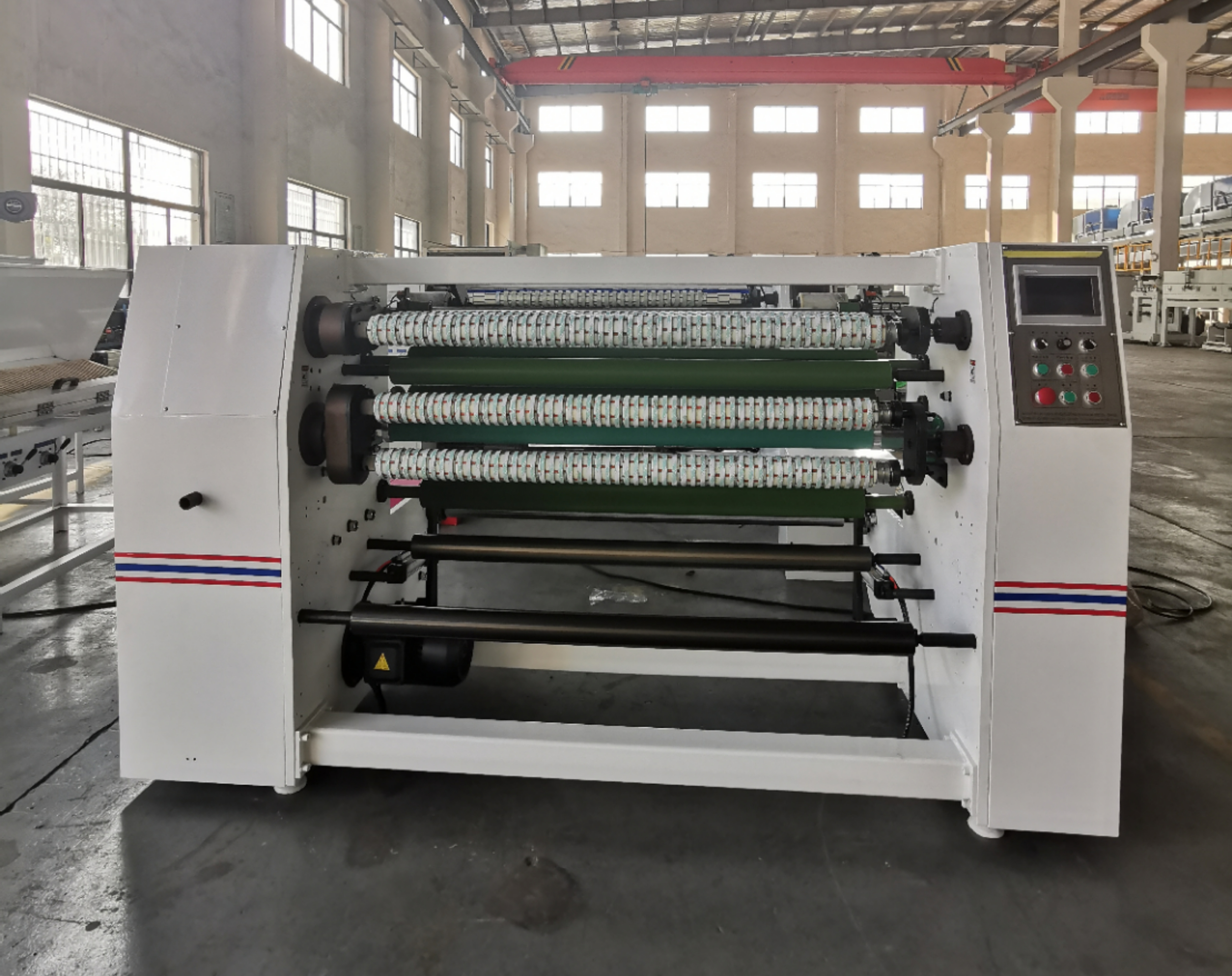

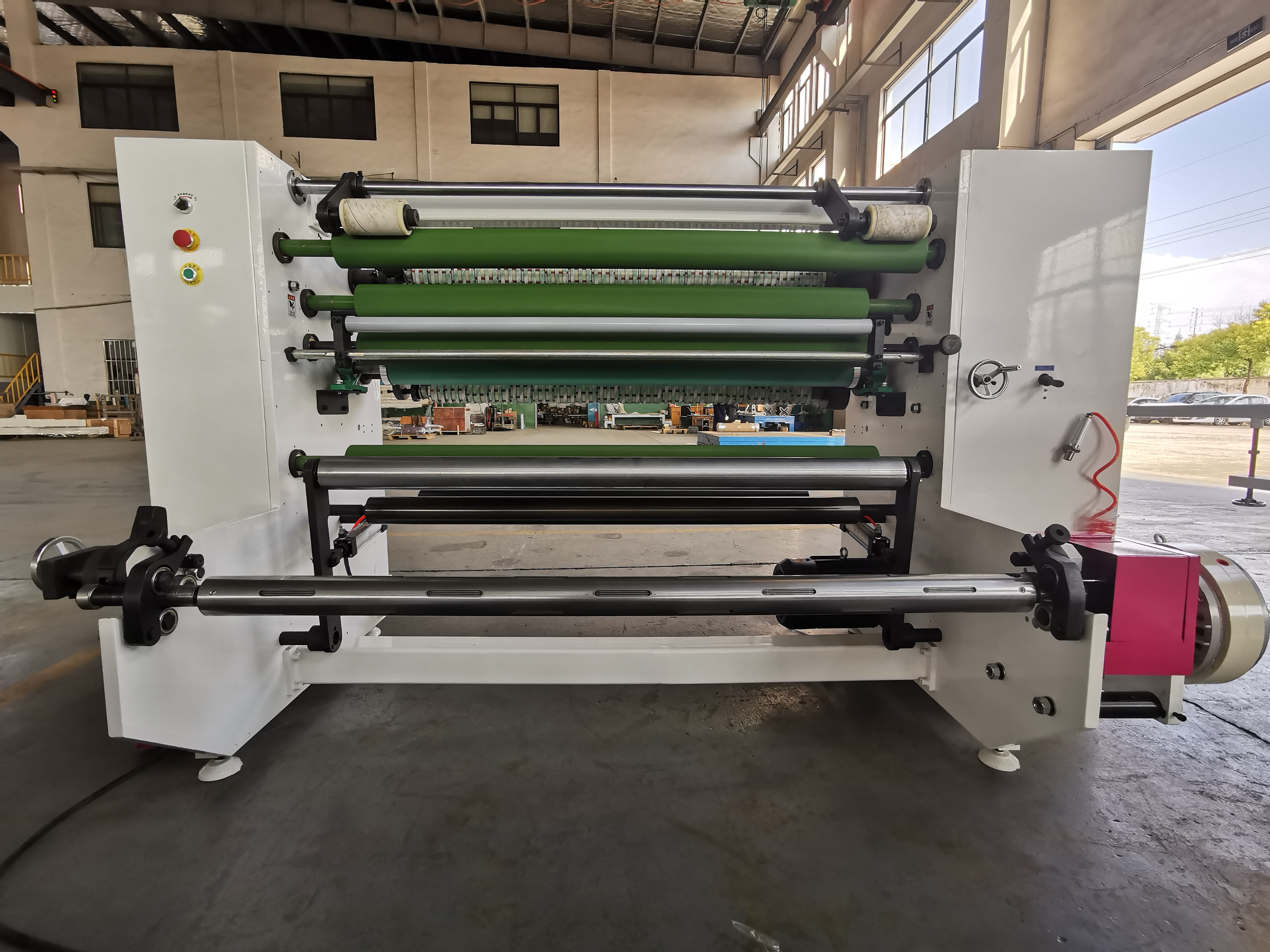

GS210 2024 latest bopp adhesive packing tape slitting machine
General technical parameters（customized）:
| Width | 1300mm |
| Max. unwinding diameter | 700mm |
| Max. rewinding diameter | 215mm/350mm |
| Slitting width: | 12-1280mm |
| Slitting tools: | razor blade |
| Paper core | 76.2mm |
| Machine speed | 0-250m/min |
| Unwinding shaft | 3’ air shaft |
| Unwinding brake | 10 KG Pneumatic brake |
| Rewinding shafts | Aluminum shaft with bushes |
| HMI | Weinview |
| Drive motor | AC 5HP motor with inverter（Taiwan+Mitsubishi） |
| Power use | 380V 50Hz 3Phrase |
Application:
This is one set of 2024 latest slitting machine which machine speed can be 250m/min,its operation by HMI and length counting display in HMI,which can be more automatic, accurate,high efficient.
Features:
This machine is 2024 latest slitting machine,its Mitsubishi control system is as stable as ever, on this basis, the use of touch frequency operation, more simple, automatic calculation of meters in the touch frequency accurate display, while the machine speed from the original 150 to 250m/min, greatly improving the production efficiency.
It has several features:
A) Apply Mitsubishi control system which can ensure stability of machine operation,trouble-free.
B) More simple and easier to operate.
C) Low cost &high return
D) Unwinding part controlled by Pneumatic brake
E) Apply HMI display data,which is more simple and convenient.
F) Rubber pressing roller controlled by air cylinder which is easy to operate and greatly increase the capacity.
G) Rewinding shafts can two-two exchange driven by 1/2HP AC motor which means it can change the 2 finished tapes rolls without stop machine.
