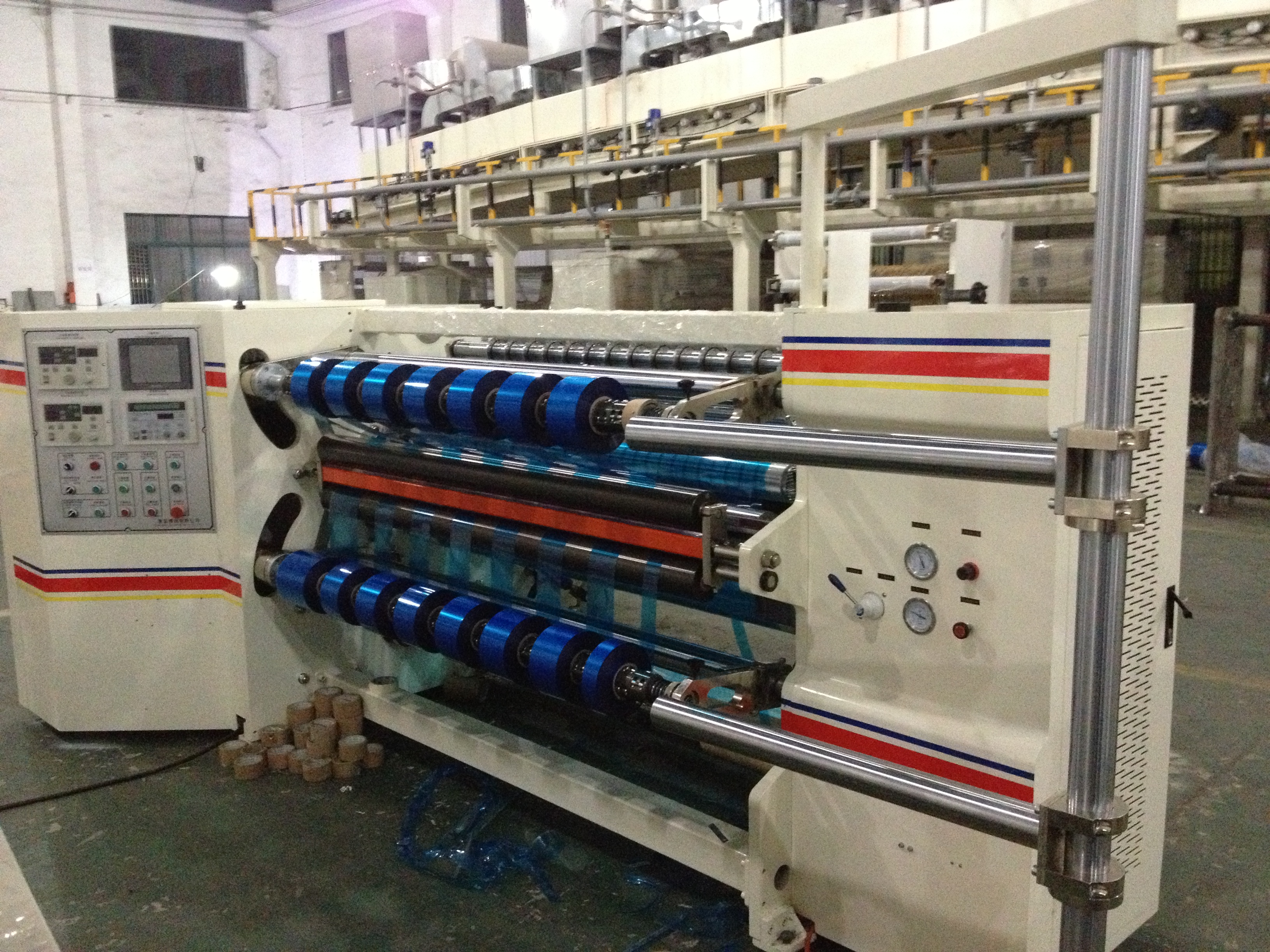

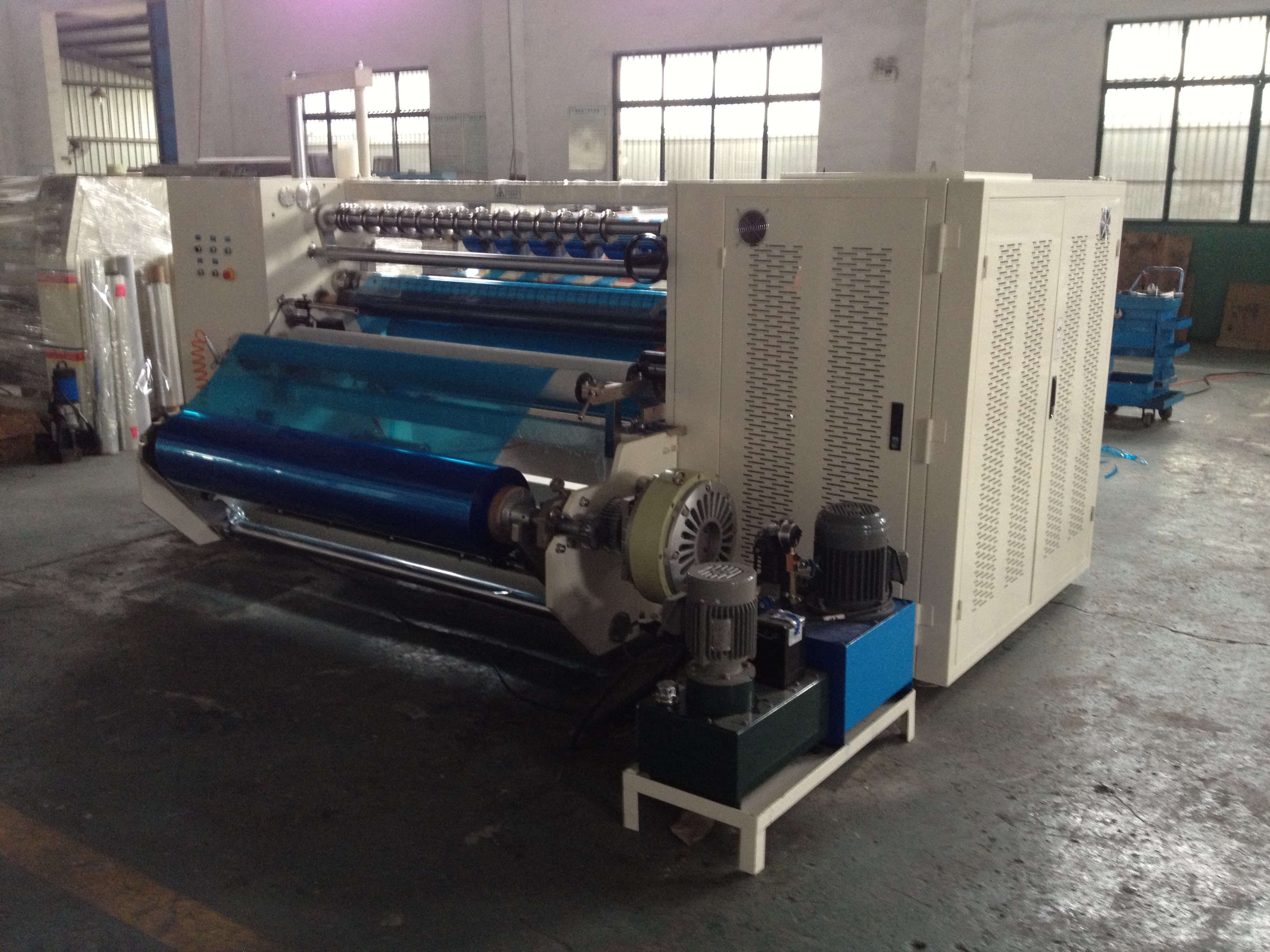

GS205 PET tape slitting and rewinding machine
General technical parameters（customized）:
| Width | 1300mm/1600mm |
| Max. unwinding diameter | 1000mm |
| Max. rewinding diameter | 500mm |
| Paper core | 76.2mm |
| Machine speed | 0-150m/min |
| Type: | double shaft rewinding |
| Unwinding shaft | 3’ air shaft |
| Rewinding shaft | 2pcs precision slip shafts |
| Slitting tools: | Customized round blade |
| Operation: | By HMI |
| Rewinding length | Length counting display in HMI |
| Drive motor | 7.5 HP motor with inverter |
| Tension control | 10kgs Magnetic powder clutch |
| Electrical control | PLC (Mitsubishi) |
Application:
This slitting and rewinding device mainly used for slitting and rewinding adhesive tape products, such as PET tapes etc .The whole machine adopts Mitsubishi PLC program control and online correction system to ensure stable operation and prevent material deviation. The slitting tool adopts a customized round blades, with an adjustable blade shaft design, suitable for slitting with different width requirements; Adopting hydraulic station lifting feeding, simple and fast, saving manpower.Adopting precision slip shafts for rewinding which can keep stable tension during the production, ensure products tight and not loose.
Features:
This slitting and rewinding device mainly used for slitting and rewinding adhesive tape products, such as PET tapes etc .The whole machine adopts Mitsubishi PLC program control and online correction system to ensure stable operation and prevent material deviation. The slitting tool adopts a customized round blades, with an adjustable blade shaft design, suitable for slitting with different width requirements; Adopting hydraulic station lifting feeding, simple and fast, saving manpower.Adopting precision slip shafts for rewinding which can keep stable tension during the production, ensure products tight and not loose.
It has several features:
A) Machine adopts Mitsubishi PLC program control and online correction system
B) Apply hydraulic station lifting feeding, simple and fast, saving manpower.
C) Slitting tool adopts a customized round knife, with an adjustable blade shaft design
D) Adopting precision slip shafts for rewinding which can keep stable tension during the production, ensure products tight and not loose
E) Operation by HMI which is easier and simple.
F) Auto tension control in unwinding part by magnetic powder clutch.
