Experimental precise coater/coating machine/mini coating machine for material test/new products research &development
Technical parameters:
|
Machine width(mm): |
520mm |
customized |
| Machine speed(m/min): | 0-40m/min | depends |
| Substrate thickness(μm): | 20-75μm | depends |
| Coating thickness(μm): | depends | |
| Coating methods: | Comma coating, gravure coater | |
| Temperature of oven(℃): | 60-130℃ | |
| Heating ways: | By electric | depends |
| Automatic grade: | Automatic | |
| Tension control: | Each section has different tension control ways which can ensure the material running stably,without wrinkle,rewinding orderly. | By floating roller;by tension sensor;by magnetic powder clutch etc. |
| Drive type: | By motor(Made by Taiwan ) | |
| Voltage: | 380V/400V/420V/440V(Depends) | depends |
| Leading time： | 3months(90days) | |
| Country of origin: | China | |
| Brand : | GS | |
| Dimensions: | 8/10/12m(L)*3.5(W)*6.5m(H) | depends |
| Weight: | About 10-12T | depends |
| Certification: | CE certificate | |
| Warranty: | At least 1 year | |
| After-sale service： | Contact us,anytime,anywhere, response within 24hour | |
| Packing&delivery： | Seaworthy packing,loading into containers(40HQ &20GP),big trucks transport to Shanghai port,then load to vessel to destination port. |
Application:
This machine made for those new material test,new products research and development which widely applied in new material field,electronics industry etc. Suitable for PET/release paper and other related composite material coating and laminating.
Features:
This machine is customized according to user’s actual demands,it will help them research and develop some new products with the times.
It has several features:
A) Unwinder : apply simple unwinder with precision correction device.
B) Corona machine: with single corona machine which can greatly ensure the uniform and flatness of material
C) Coater: respectively apply precision gravure coater and comma coater which can realize accurate coating amount to meet different production technology.

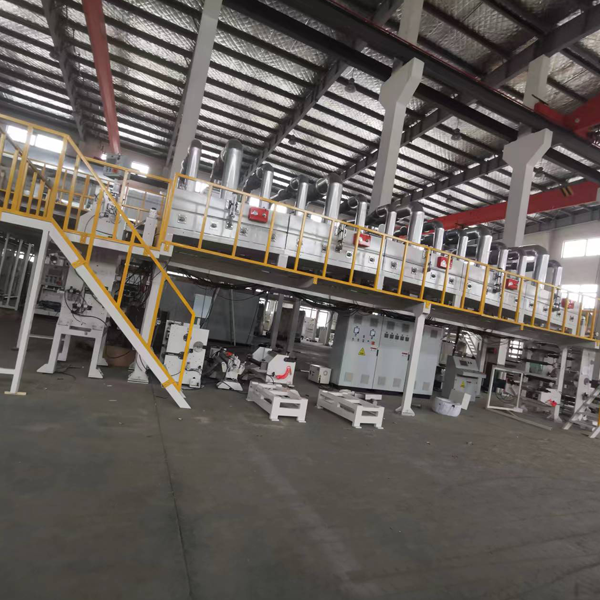

D) Oven: advanced ’box-open ’ oven type controlled by cylinder, each oven can be open like a box which can intuitively see the inner situation of each section, also it will be benefit for late cleaning of oven, the oven liner apply stainless steel which will greatly increase the corrosion resistance,heat conductivity,stability and useful life, each oven section has 4 pieces high-quality steel rollers driven by servo motor.the outer of oven connect stainless steel duct.
E) Tension control: the tension of each section can be controlled separately, which can keep the material running stable without wrinkle and shrinkage. It controlled by floating roller;by tension sensor;by magnetic powder clutch etc.
F) Rewinder: apply simple rewinder with imported tension sensor,rewinding tension controlled by inverter motor with reducer.
