1600mm PVC electrical insulation tape coating machine

Short Description:


Product Detail

FAQ

Product Tags

Name: PVC electrical adhesive tape coating machine

Machine details:

Machine width(mm):  (can be customized)

1000mm

1300mm

1600mm

Machine speed(m/min):

15-50m/min

Substrate thickness(μm)

90-120

Coating thickness(μm):

10-35

Coating methods:

gravure coating, comma coating

Temperature of oven(℃):

80-150

Heating ways:

Electric heating, steam heating, hot oil heating, hot air heating..

Automatic grade

automatic/semi-automatic

Tension control

the machine has tension controllers in each section to keep the material running stably,without any wrinkle, and finally rewinding orderly (Japanese brand)

Driven type By motor (Taiwan brand)



Voltage 380/400/420/440V(depends on customers)
Packing type/Packing materia Pallet, wooden case, film, standard seaworthy packing
Place of origin Taicang China
Brand name GS machinery
Dimensions 18/28/32/36/40m/44/56(L)*2.3m(W)*6.5m(H)
Weight 30-40Ton
Certification CE
Warranty 1 year
After-sale service Contact us, anytime,anywhere
Leading time 90-120days
Package&delivery seaworthy packing, load into container(40’ or 20’), big trucks transport to Shanghai port, then loading to cargo vessel to destination port.

Application :

Suitable for making PVC electrical adhesive tape jumbo roll

Features:

  1. Unwinder and rewinder which can change rolls without stopping machine, continuous production, with high efficiency.
  2. Apply diffencent coating methods to realize accutate coating amount according to different production technology.
  3. Two oven types can be chose: ‘open from side door’ or’ open from roof’, the substrates are carried by crawler.
  4. The oven has good insulation performance as well as accurate temperature control.
  5. The whole machine has tension controllers to control each section to keep the material running smoothly without any wrinkle, and little shrinkage.
  6. The rewinder applies surface rewinding way to automatically rewind and cut small rolls with fixed length and without stopping machine.

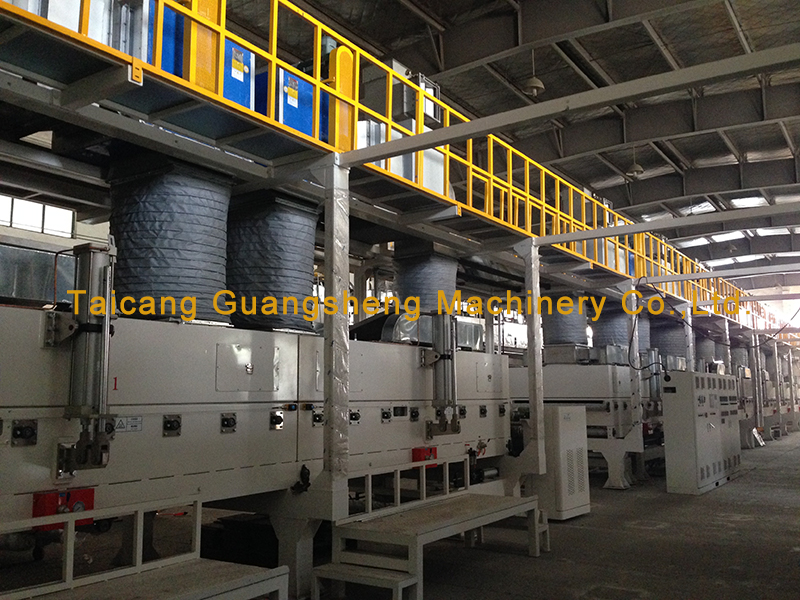

1600mm PVC electrical insulation tape coating machine2800

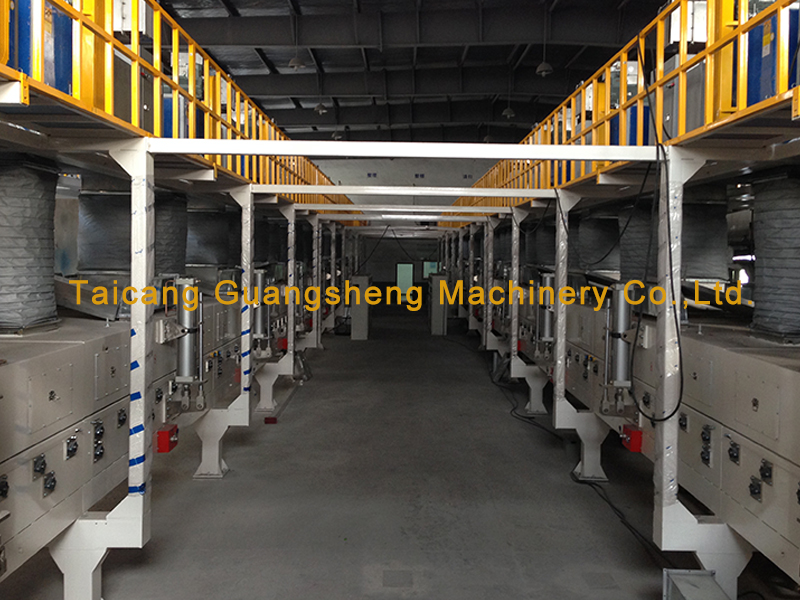

1600mm PVC electrical insulation tape coating machine3800

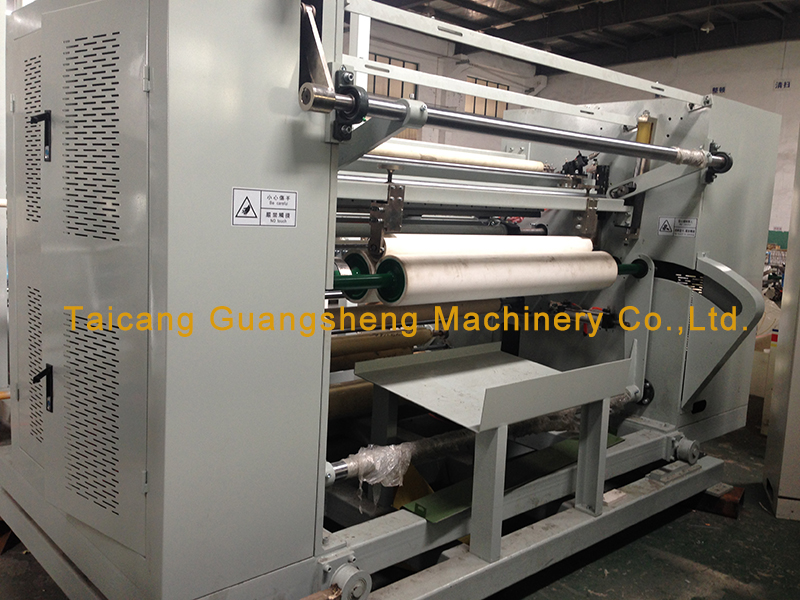

1600mm PVC electrical insulation tape coating machine4800

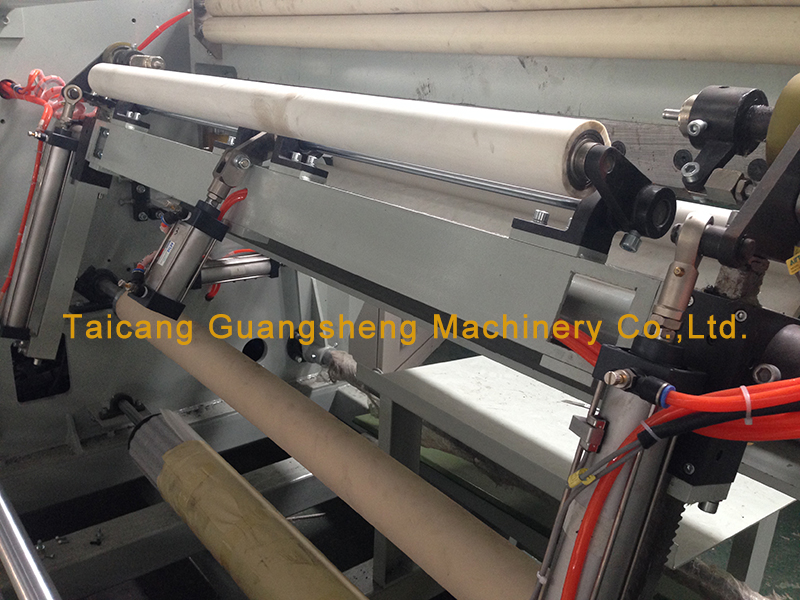

1600mm PVC electrical insulation tape coating machine5800
